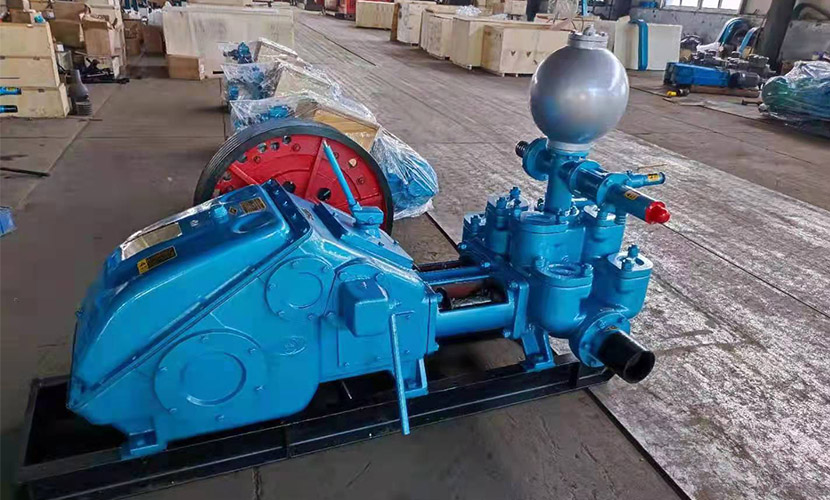

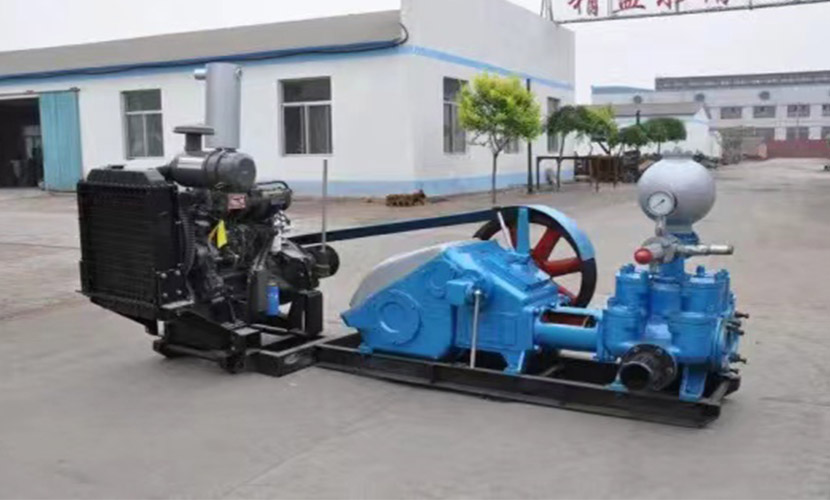

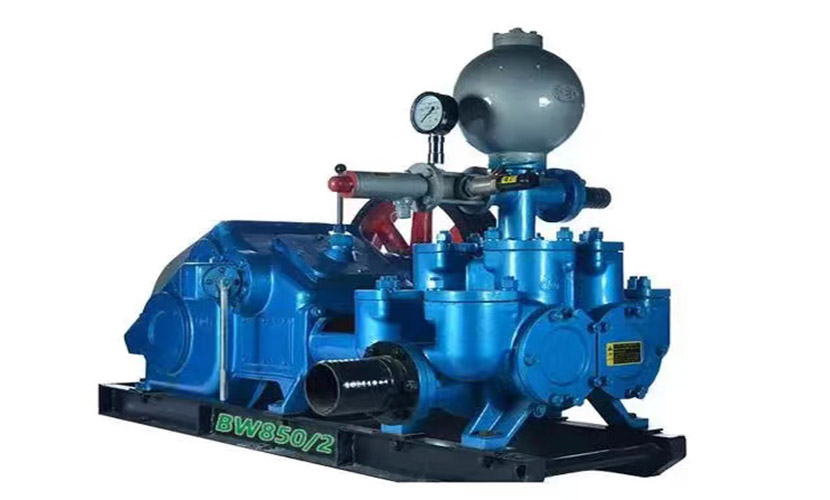

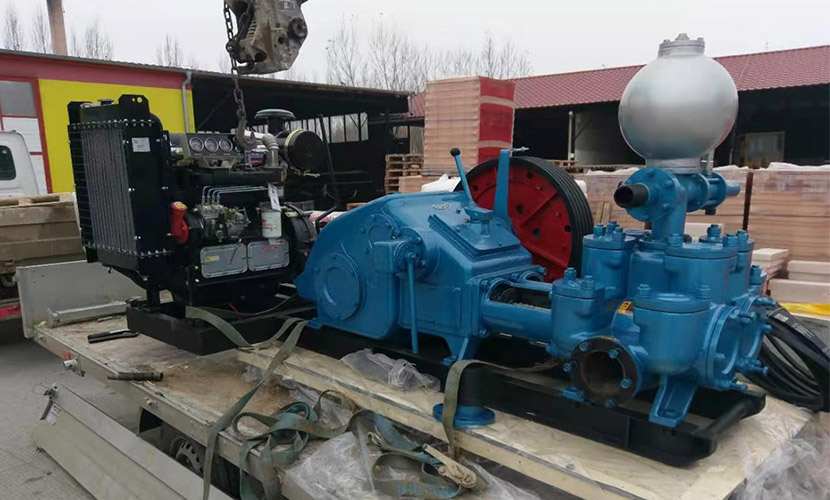

BW 850/2 mud pump

OVERVIEW：

BW850 mud pump is used in all kinds of engineering drilling rigs and drillingfluids are sent to the drilling fluid (mud or wa

We're here to help:

Easy ways to get the answers you need.

Leave Message

yesdrillrig@gmail.com
+86 13140012636

FEATURES

YETUO-BW850 mud pump is used in all kinds of engineering drilling rigs and drillingfluids are sent to the drilling fluid (mud or water) when drilling.

1.YETUO-BW850 slurry pump is horizontal reciprocating double cylinder double actingpiston pump.

2.Variable speed is used to change displacement and pressure for use.

TECHNICAL DATA

Type	Horizontal double cylinder reciprocating double action piston pump
Cylinder diameter (mm)	150
Stroke(mm)	180
Pump speed (rpm)	82	58
Flow (L/min)	850	600
Pressure (MPa)	2.0	3.0
Power (Kw)	37
Shape size (mm)	200010301400
Weight (kg)	1500
